Arrow Tight Waterproofing doesn't sell one-size-fits-all waterproofing packages. We diagnose the entry point, the pressure source, and the existing drainage condition — then we build the solution around what your specific property needs.
💧
Interior Drain Tile & Perimeter Channel Systems
When hydrostatic pressure is the primary culprit, the most effective long-term solution is a properly engineered interior drainage system. We install sub-slab perforated drain tile around the perimeter of your basement — capturing water before it can rise above slab level — and route it to a sump pit equipped with a dual-pump configuration.
Our sub-slab drainage systems use schedule 40 perforated PVC pipe in a stone bed, designed to handle high-volume water tables.
📞 Get a Free Drainage Quote →
🏗️
Exterior Foundation Coating & Drainage Board Installation

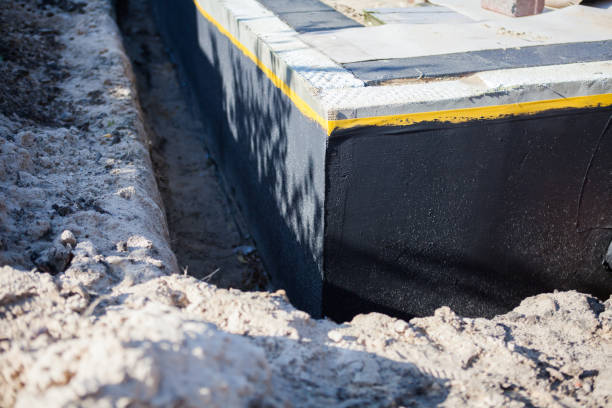

Full exterior waterproofing involves exposing your foundation to the footer depth, applying a crystalline or elastomeric waterproofing membrane, installing a geocomposite drainage mat, and placing exterior drain tile at the footing — the same specification used in new commercial construction.
This approach solves the problem at the source: water never reaches your interior wall surface.
📞 Schedule an Exterior Assessment →
🔧
Structural Crack Repair: Injection & Carbon Fiber Stapling
Poured concrete foundation cracks are repaired from the interior using high-pressure polyurethane or epoxy injection — the appropriate chemistry depends on whether the crack is actively leaking or dry. Polyurethane foam expands into wet, actively leaking cracks and cures flexible, accommodating minor future movement. Epoxy injection is used in dry cracks where structural bond restoration is the goal.
For concrete block foundation walls showing horizontal cracking or inward bowing, we pair crack repair with carbon fiber reinforcement straps anchored at the floor and rim joist.
📞 Get a Crack Injection Estimate →
🌿
Crawl Space Moisture Control: Encapsulation to Full Waterproofing
We install a minimum 20-mil reinforced poly vapor barrier over the entire crawl space floor and seal it up the walls to the sill plate — then seal all vents, install a conditioned air supply or dedicated crawl space dehumidifier, and spec a sump system if groundwater is present.
Encapsulation turns your crawl space from an uncontrolled dirt floor into a semi-conditioned space.
📞 Schedule a Crawl Space Inspection →
⚙️
Primary & Backup Sump Pump Systems for West Chicago Homes
The sump pit itself matters as much as the pump. We construct 18-inch diameter pits with a gravel bed at the base for proper water collection, sealed lids to prevent vapor and radon entry, and a discharge line that terminates a minimum of 10 feet from the foundation at a positive-grade daylight point.
For finished basements and properties with high groundwater, we recommend a dual-pump system: a primary submersible at normal operating level and a pedestal backup set two inches higher.
📞 Get a Sump System Quote →
🪟
Window Well Drainage & Egress Window Waterproofing
Basement window wells are one of the most underestimated water entry points in residential waterproofing. When the well drain becomes clogged or the well itself is sized incorrectly for your roof drainage load, water pools against the window frame and enters through the sill, the window-to-frame joint, or the block wall directly adjacent.
Egress window installations create a significant opening in your foundation wall, and sealing the rough opening properly is as important as the window itself.
📞 Book a Window Well Assessment →
